| Brand Name : | CHIFON |
| Model Number : | FPR500Z-2.2G-T4 |
| Certification : | CE, ISO9001, SGS, EAC |
| Payment Terms : | L/C, T/T, Paypal |
| Supply Ability : | 10000pcs per month |
| Delivery Time : | sample order 2 working days, bulk order 7-10 working days |
Customized CE Certificated AC drive 2.2kw 220V single phase input 380v three phase
►Products Specifications:
Infineon PIM integrated power module
Integrated power devices
Integrated all parts and circuits small size, large power
Low loss, more stable
Multiple defensive functions
Over-voltage protection, low-voltage
protection, over current protection, over-load protection
Over-heating protection, loss of speed protection, phase protection
External fault, communication error, PID feedback signal abnormalities, PG failures, current detection fault, motor self-learning fault, EEPROM operation fault, such as multiple protection mechanisms.
Specification of lnverter
| Standard functions | V/F curve | Straight-line V/F curve Multi-point V/F curve N-powerV/F curve (1.2-power, 1.4-power, 1.6-power, 1.8- power, square) |
| V/F separation | 2 types: complete separation; half separation | |
Acceleration/deceleration curve | Straight-line ramp S-curve ramp Four groups of acceleration/deceleration time with the range of 0.00s~65000s | |
DC braking | DC braking frequency: 0.00 Hz ~ maximum frequency Braking time: 0.0~100.0s Braking trigger current value: 0.0%~100.0% | |
| JOG control | JOG frequency range: 0.00Hz~50.00 Hz JOG acceleration/deceleration time: 0.00s~65000s | |
| Built-in PLC, multiple speeds | It realizes up to 16 speeds via the simple PLC function or combination of DI terminal states | |
| Built-in PID | It realizes closed loop control system easily. | |
| Auto voltage regulation (AVR) | It can keep constant output voltage automatically when the mains voltage fluctuation. | |
| Overvoltage/ Over current stall control | The current and voltage are limited automatically during the running process so as to avoid frequently tripping due to overvoltage/over current. | |
Rapid current limit function | It can auto limit running current of frequency inverter to avoid frequently tripping. | |
| Torque limit and control | (Excavator characteristics) It can limit the torque automatically and prevent frequently over current tripping during the running process. Torque control can be implemented in the VC mode. |
►Application fields

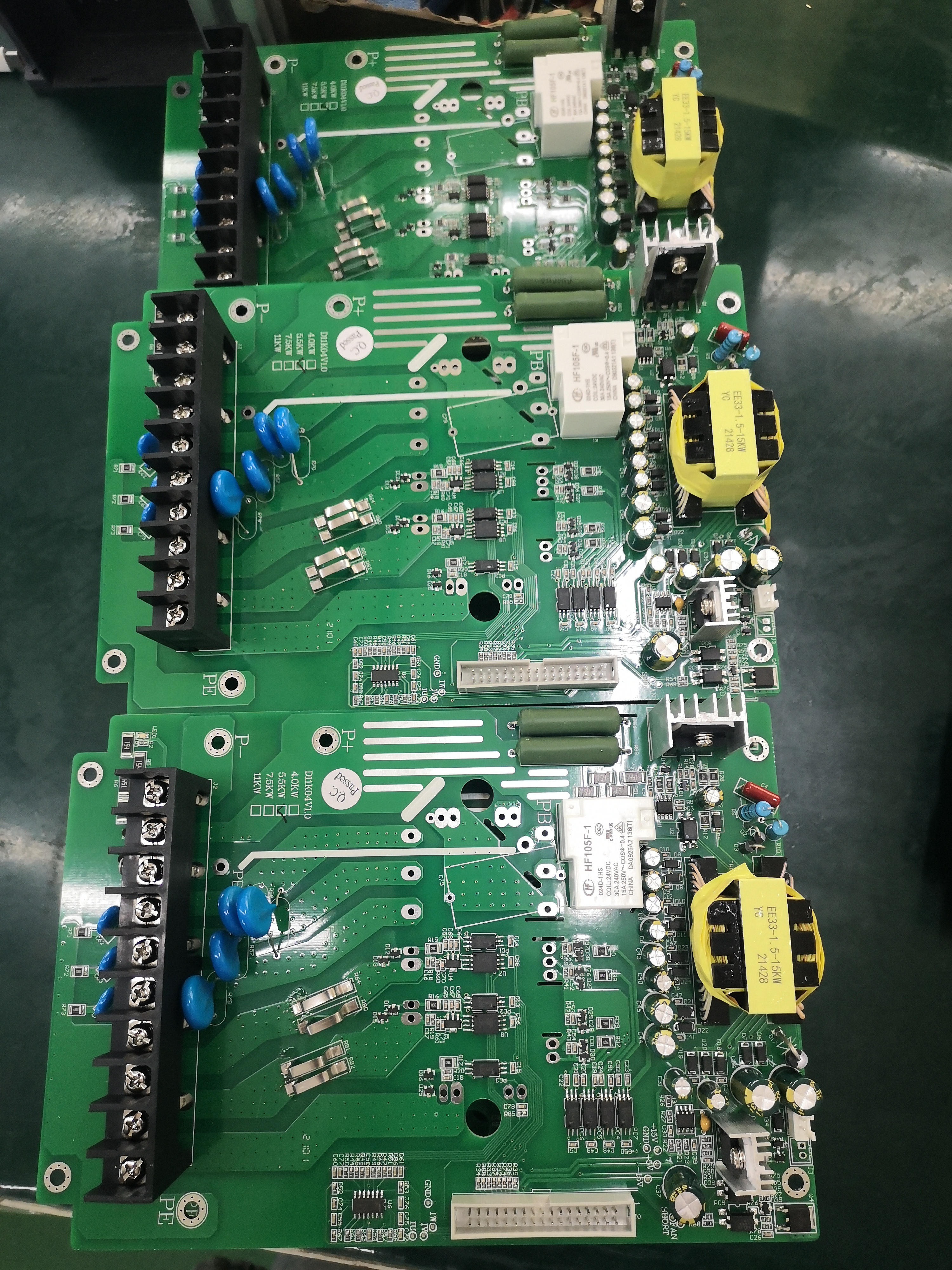

►Core components:
|
|
